GPM MAKX021/V1 6061 ALLOY FRONT STEERING KNUCKLES ARM ( LARGER BEARINGS ) ARA330558 ARA340158 For ARRMA 1/5 KRATON OUTCAST 8S EXB ARA110002 ARA5810 by RCMODEL
MAKX021/V1-B
EAN: 4894538414417
BLUE
BLACK
GREEN
ORANGE
RED
SILVER
Description
GPM MAKX021/V1 6061 ALLOY FRONT STEERING KNUCKLES ARM ( LARGER BEARINGS ) ARA330558 ARA340158 For ARRMA 1/5 KRATON OUTCAST 8S EXB ARA110002 ARA5810
Original part No：
ARA330558 ARA340158 ARA330582
Features:

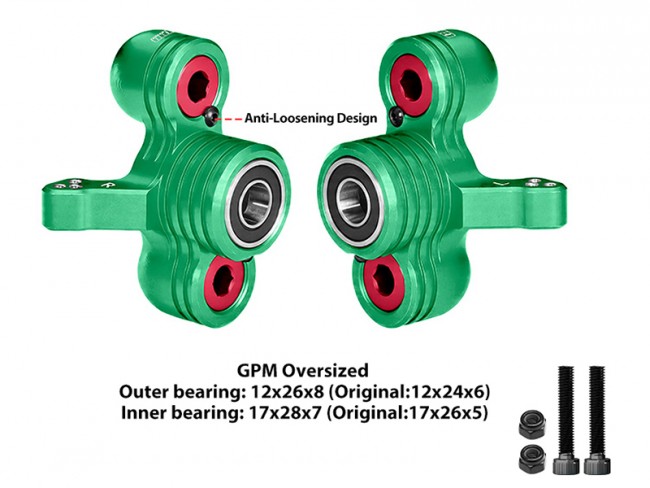

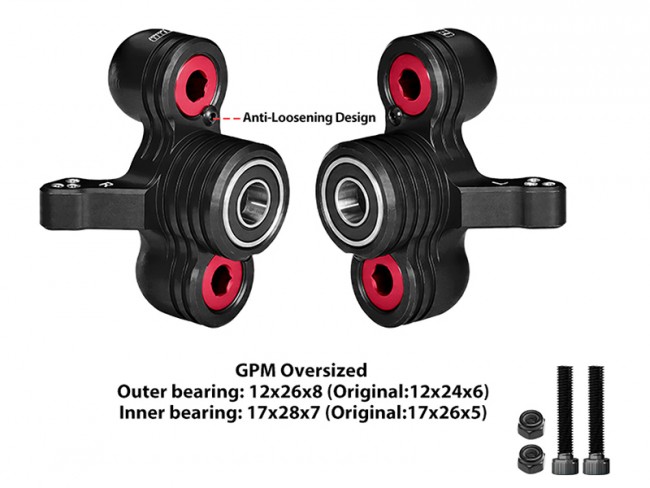

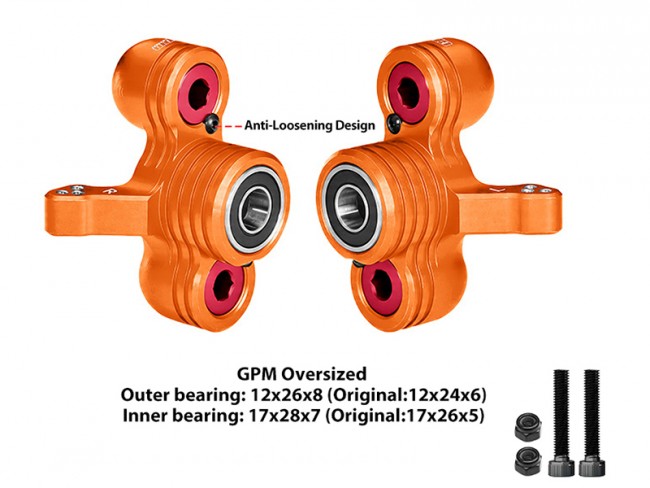

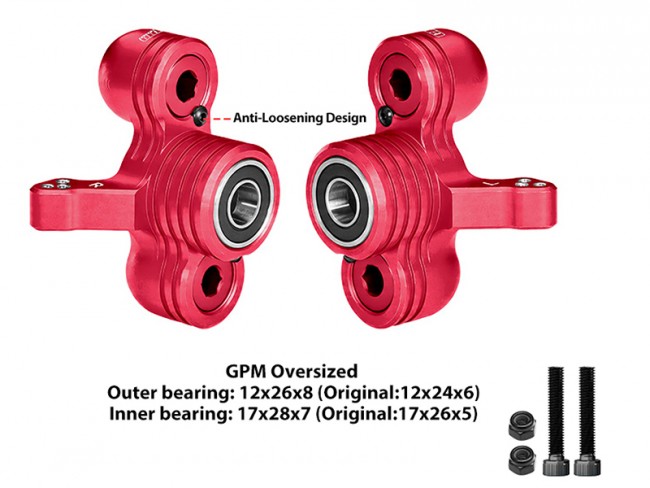

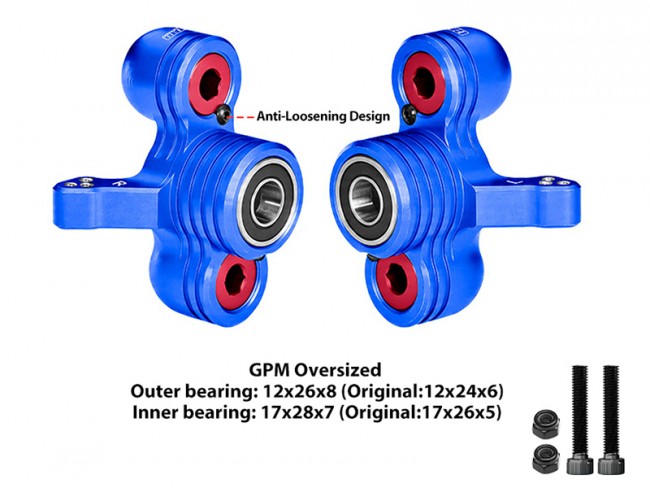

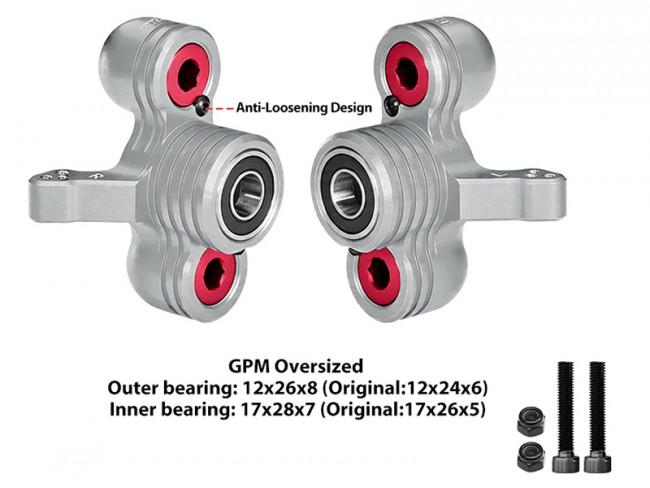

(1) Front seering knuckle is made of 6061-T6 alloy; Front hub nut are made of 7075-T6 alloy and feature anti-loosening design, secured with 3×6 round head screws to prevent loosening.
(2) The outer bearing has been oversized to 12x26x8mm (original: 12x24x6mm), inner bearing has been oversized to 17x28x7mm (original: 17x26x5mm)
(3) Install tie rod in 3 different positioning holes to adjust angle of tie rods to suit different drives.
(4) Replaces factory part number (ARA330558+ARA340158+ARA330582)
Package includes：
Front Steering Knuckles-2pcs
Grade 12.9 Black Cap Head Screws 4x38-2pcs
Grade 12.9 Black Round Head Screws 3x6-4pcs
M4 Lock Nut-2pcs
Aluminum 7075-T6 Front Hub Nut Red-4pcs
Oversized Outer Bearing 12x26x8-2pcs
Oversized Inner Bearing 17x28x7-2pc
Suitable Model：
ARRMA 1/5 Kraton 4X4 8S BLX Brushless Speed Monster Truck RTR ARA110002
ARRMA 1/5 Outcast 4WD 8S BLX Stunt Truck RTR ARA5810
ARRMA 1/5 Kraton 8S EXB 4X4 Roller Brushless Speed Truck ARA5208
ARRMA 1/5 Kraton 8S EXB AVC 4X4 RTR Brushless Speed Truck ARA5808V2
ARRMA 1/5 Outcast 8S EXB 4X4 Roller Brushless Stunt Truck ARA5210
ARRMA 1/5 Outcast 8S EXB AVC 4X4 RTR Brushless Stunt Truck ARA5810V2
