Description

GPM XRT3520S 20CrMnTi STEEL TRANSMISSION INPUT GEAR M1.0 20T SPUR GEAR M1.5 35T 7785X 7786X For TRAXXAS 1/6 XRT 8S / 1/5 X-MAXX 8S 78086-4 77086-4

Original Part Number
7785X+7786X

Features

(1) Made of 20CrMnTi Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 20CrMnTi Steel Spur Gear 35T M1.5 and transmission Input Gear 20T M1.0 and bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Features an integrated motor gear and input shaft design that eliminates the 2.5mm pin. Motor gear module: 1.0mm, number of teeth: 20T.
(4) Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 35T,tooth surface width: 14mm,Outer diameter: 55.4mm

Note: It is not suitable for TRAXXAS 1/5 X-Maxx 8S Monster Truck-77096-4

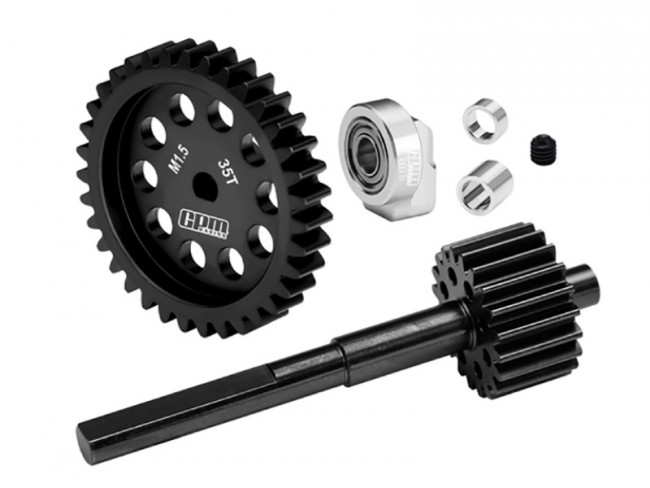

Package Includes
Spur Gear 35T M1.5
Transmission Input Gear 20T(1.0 Mod)
Aluminum 7075 Mount
Bearing 6x13x5
shim 6x8x3.5
shim 6x8x7.5
Set Screws 5x5

Suitable Models
TRAXXAS 1/6 4WD XRT 8S 78086-4
TRAXXAS 1/5 X-Maxx 8S Monster Truck 77086-4
TRAXXAS 1/6 XRT Ultimate 8S 78097-4
TRAXXAS 1/5 X-Maxx 8S Ultimate 77097-4

---
