Description

GPM MQM071F/R ALLOY FRONT/REAR ADJUSTABLE PROGRESSIVE SPRING SHOCK 71mm ARA-2591 FOR ARRMA 1/16 QUAKE GROM GORGON GROM

Original part No：
ARA-2591

Part location：
Front or rear shock area

Major advantages of upgrading to this part/product：
(1) The 6061-T6 alloy shock absorbers filled with oil (Injected with 500cSt silicon oil) and sealed cover,which is durable and has a good resistance effect.
(2) The original spring wire diameter is 1.16 mm, The black progressive spring installed on the shock absorber（wire diameter of 1.1mm）. GPM will also include an additional silver progressive spring（1.2mm wire diameter） in the package, which can be replaced according to your own needs
(3) The front or rear shock absorber （centre distance is 71mm）, The GPM shock shaft diameter is 2.5mm, same as the original size.
(4) Progressive spring design, more dynamic adaptability, spring stiffness changes with load (soft first and then hard), can better adapt to different road conditions or load conditions.
(5) Replaces factory part number (#ARA-2591)

Adjustable：
How: Adjust the top spring retainer.
Purpose: To adjust the hardness of the spring damper.

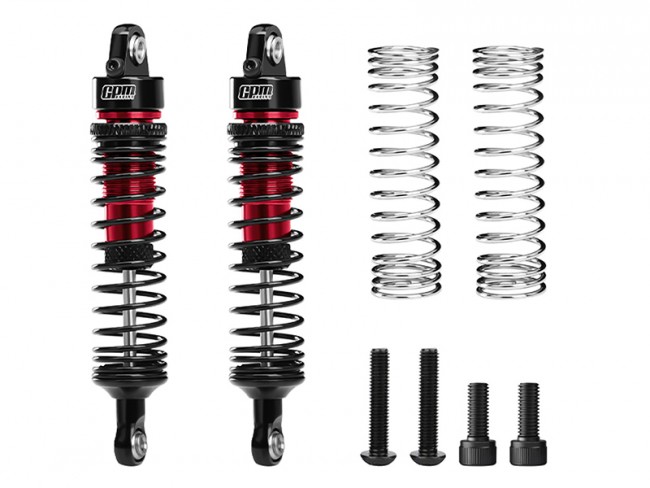

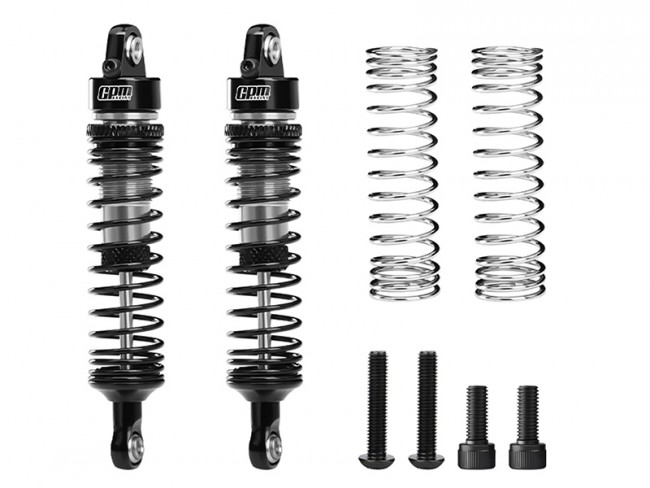

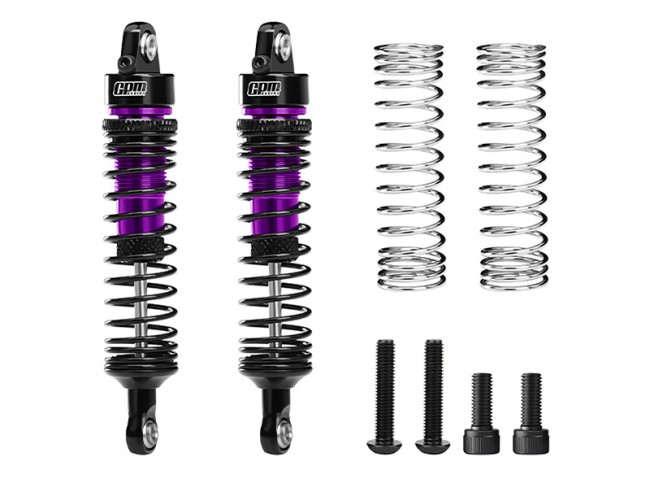

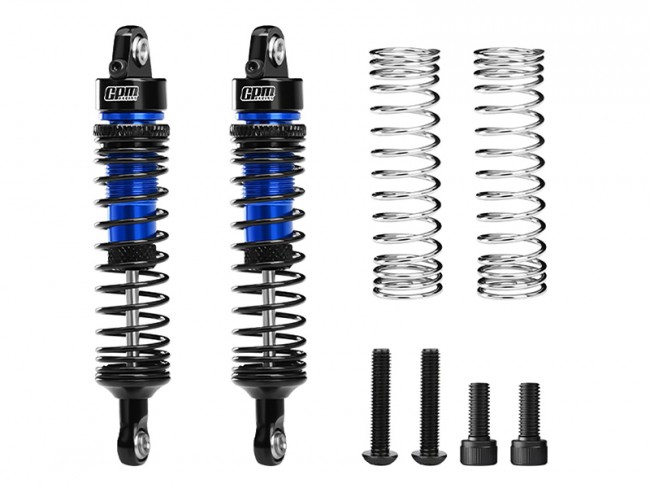

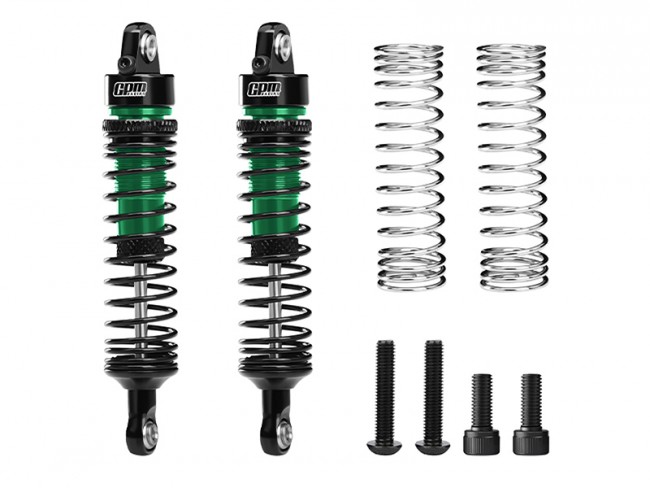

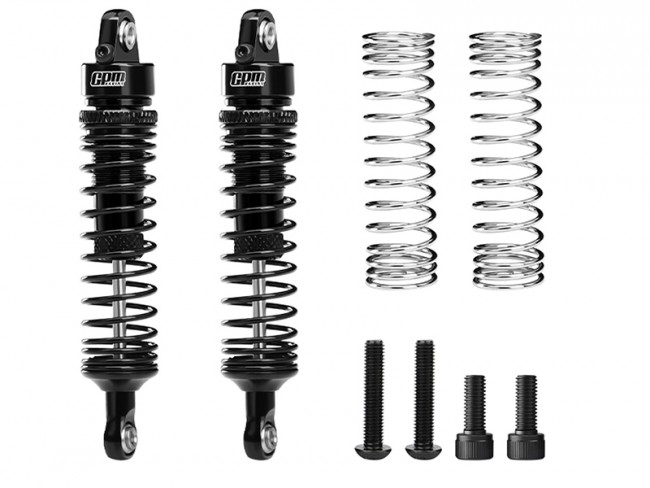

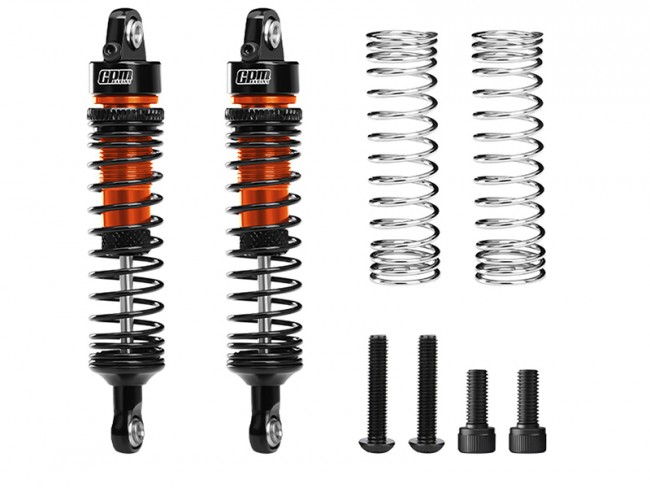

Package includes：
Shock-2PCS
Progressive Silver Spring 1.2mm-2PCS
Grade 12.9 Black Round Head Screws 3x12-2PCS
Grade 12.9 Black Cap Head Screws 2.5x8-2PCS

Suitable Model：
ARRMA 1/16 QUAKE GROM 4X4 RTR Brushed Monster Truck ARA2137
ARRMA 1/16 GORGON GROM 4X4 RTR Brushed Monster Truck ARA2130

---
