Description

GPM TSM1660TS GEARBOX GEAR BELT DRIVE SET WITH MOTOR GEAR 16T / 30T FOR TRAXXAS 1/10 SLASH MUDBOSS / CRANIAC / BANDIT XL-5 2WD / RUSTLER VXL

Major advantages of upgrading to this part/product

Installation steps:
(1) First put the metal plate of the original gearbox into the designated position.
(2) Select the friction plate of the corresponding size and stick it accurately into the groove of the corresponding pulley.
(3) Place the bearing in the middle of the device.
(4) Install the original metal plate, limit anti-skid spring and nut in sequence, and ensure that they are firmly installed.
(5) First install the two gears relatively close to each other so that the belt can be put on them, and then adjust the distance between the gears to keep the belt in a tightened state.
Notes:
(1) This product uses belt drive, which can effectively reduce the noise of the gearbox and reduce the shaft effect compared to traditional metal drive.
(2) It should be noted that the power of belt drive is smaller than that of gear drive. If you have high power requirements for your device, please consider purchasing it carefully.
(3) To ensure product compatibility, please be sure to measure the size of your motor shaft before purchasing. This product is suitable for motor shafts with an inner diameter of 3.175, of which the large gear is a general specification.

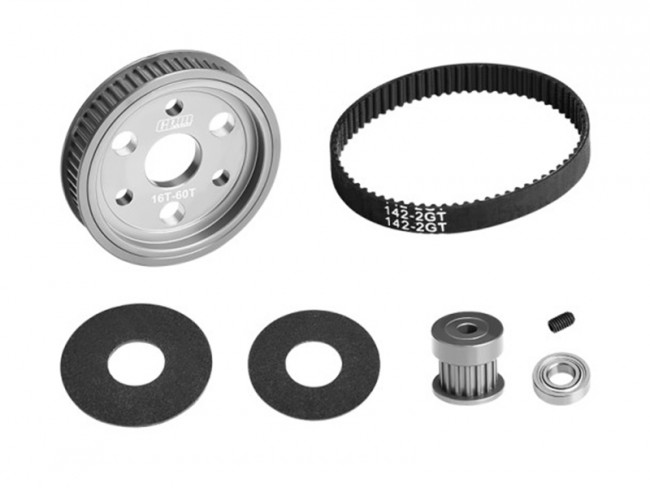

Package includes：
Spur Gear 60T-1PCS
Pinion Gear 16T-1PCS
Belt 142mm-1PCS
Friction disc 12x32x0.8-1PCS
Friction disc 12x28x0.8-1PCS
Bearing 5x11x3-1PCS
Set Screws 3x5-1PCS

Suitable Model：
TRAXXAS 1/10 SLASH MUDBOSS MODIFIED DIRT OVAL RACER 104354-74
TRAXXAS CRANIAC
TRAXXAS 1/10 2WD BANDIT XL-5 OFF ROAD RC BUGGY 24054-1
TRAXXAS 1/10 2WD BANDIT XL-5 BUGGY 24054-1
TRAXXAS 1/10 2WD BANDIT XL-5 BUGGY 24054-61
TRAXXAS 1/10 2WD BANDIT XL-5 BUGGY 24054-4
TRAXXAS 1/10 2WD BANDIT 24254-8
TRAXXAS RUSTLER VXL
TRAXXAS 1/10 RUSTLER VXL 37076-3

---
